Design and calculation software of plate spring

Please fill your requirment:
  • Spring material:
  • Plate thickness T:：
  • mm
  • Plate width B:
  • mm
  • Plate Length L1:
  • mm
  • Fixed end length L2:
  • mm
  • R angle R:
  • mm
  • Displacement distance dx:
  • mm
Please carefully fill in the above parameters of the plate spring.
　　

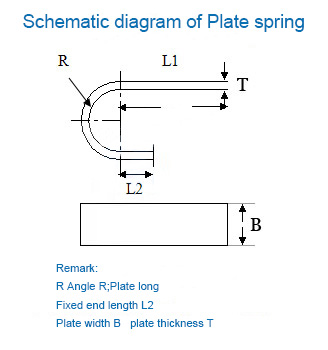

Plate spring schematic diagram
View the results
  • Spring material:
  • Coefficient of longitudinal elasticity E:
  • Kg/mm2
  • Maximum stress Smax:
  • Pa
  • Poisson ratio Pr:
  • Y：
  • Action force P=
  • g
  • Maximum action force Pmax=
  • g
  • Stress S=
  • Kg/mm2
  • Safety Factor SF=
  • %
  • Spring weight M=
  • g

*Spring weight M=



Plate spring design calculation software:it contains a lot of spring elasticity formula, plate spring calculation formula, spring stiffness calculation formula, spring length calculation formula in it, can easily realize the spring elasticity calculation, spring design calculation, spring stiffness calculation. I hope this plate spring calculator (plate spring calculation software) can help you play a little auxiliary role in the torsional spring design!
